PVDF Heat Shrink Tub
PVDF Heat Shrink Tubes
Category：PVDF Heat Shrink Tubes
- 售后QQ：
- 售后QQ：
Hotline：#
Details
1.Features
Shrinkage ratio 2:1, semi-rigid, thin-walled insulation, excellent flame retardancy, high temperature resistance 175°C , good toughness, excellent abrasion resistance and chemical resistance , complies with RoHS, REACH environmental norms.
2.Operating temperature range
Continuous use temperature: -55°C to 175°C, minimum starting shrinkage temperature: 155°C, minimum complete shrinkage temperature: 175°C.
3.Conformity to standards
SAE AMS-DTL-23053/8，UL224 ，VW-0。
4.Performance indicators
|
Performance |
Indicator requirements |
Test Method |
Typical values |
|
Radial shrinkage（%） |
≥200% |
ASTM D 2671 |
200% |
|
Tensile strength |
34.5 MPa min. |
ASTM D 638 |
≥45MPa |
|
Elongation at break |
150% min. |
ASTM D 638 |
≥300% |
|
Elongation at break after ageing |
50% min. |
ASTM D 638 |
≥200% |
|
Thermal shock (300°C, 4 hours) |
No cracks |
ASTM D 2671 |
No cracks |
|
Low temperature flexibility (-55°C, 4 hours) |
No cracks |
ASTM D 2671 |
No cracks |
|
Insulation withstand voltage and breakdown |
2500V,60sec,No punctures |
ASTM D 2671 |
No breakdown |
|
Volumetric resistivity |
1013Ω·cm min. |
ASTM D 876 |
≥1013Ω·cm |
|
Corrosive |
Non-corrosive |
ASTM D 2671 |
Non-corrosive |
|
Flame retardancy |
VW-1 |
UL224 |
By |
5.Heat-shrinkable Tube Standard Sizes
a.Standard Clear, Special Colors available on request
b.Other sizes are available upon special order。
|
|
|
|
Trays/m |
Boxes/m |
||
|
（D）Inside |
（T）wall thickness/mm |
（d）Inside |
（t）wall thickness/mm |
|||
|
Φ0.8 |
1.0+0.2/-0.1 |
0.12 ± 0.05 |
≤0.45 |
0.25 ± 0.05 |
200 |
5200 |
|
Φ1.2 |
1.4+0.2/-0.1 |
0.12 ± 0.05 |
≤0.6 |
0.25 ± 0.05 |
200 |
5000 |
|
Φ1.6 |
1.8+0.3/-0.1 |
0.12 ± 0.05 |
≤0.8 |
0.25 ± 0.05 |
200 |
5000 |
|
Φ2.4 |
2.7+0.3/-0.1 |
0.13 ± 0.05 |
≤1.2 |
0.25 ± 0.05 |
200 |
3600 |
|
Φ3.2 |
3.5+0.3/-0.1 |
0.13 ± 0.05 |
≤1.6 |
0.25 ± 0.05 |
200 |
2600 |
|
Φ4.8 |
5.1+0.3/-0.1 |
0.13 ± 0.05 |
≤2.4 |
0.30 ± 0.05 |
100 |
1200 |
|
Φ6.4 |
6.7+0.3/-0.1 |
0.16 ± 0.05 |
≤3.2 |
0.33 ± 0.05 |
100 |
1500 |
|
Φ9.5 |
9.7+0.3/-0.1 |
0.16 ± 0.05 |
≤4.8 |
0.33 ± 0.05 |
100 |
1500 |
|
Φ12.7 |
12.8+0.3/-0.1 |
0.16 ±0.05 |
≤6.4 |
0.38±0.05 |
100 |
1100 |
|
Φ15.4 |
15.8+0.3/-0.1 |
0.20± 0.05 |
≤7.8 |
0.42± 0.10 |
100 |
1100 |
|
Φ19.1 |
19.9+0.5/-0.1 |
0.22 ± 0.05 |
≤9.5 |
0.43 ± 0.10 |
100 |
700 |
|
Φ25.4 |
25.7+0.5/-0.1 |
0.24 ± 0.05 |
≤12.7 |
0.48 ± 0.10 |
50 |
600 |

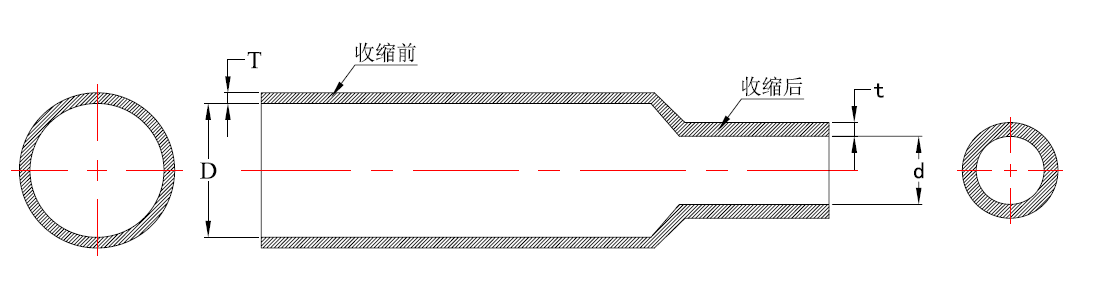

6.Engineering Picture of KYNAR Heat-shrinkable Tube
|
1.D is the finished inner diameter （Expanded as Supplied）； |
|||
|
Unit： |
Date： |
Name： |
No.： |
-
